Flat head with external extrusion

Tm type


Technical specifications
oD = 219÷6000
od = 219÷5800
r1 = 20÷400
r2 = 20÷400
h1 = 0÷150
h2 = 0÷150

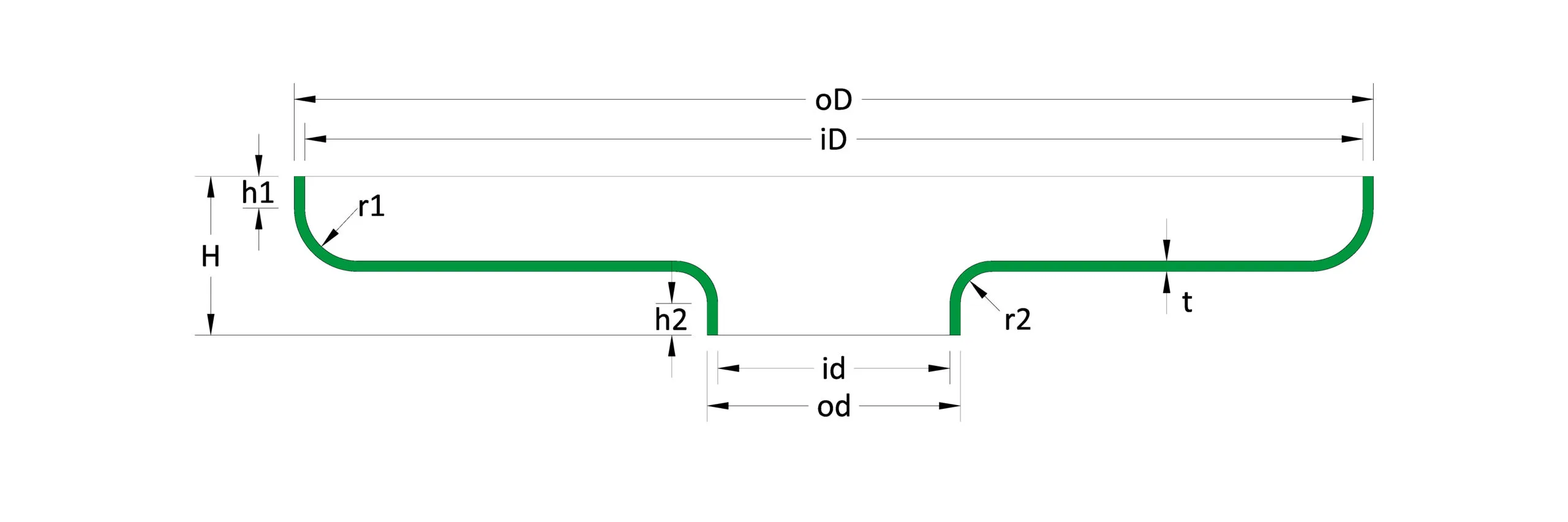

Key to symbols
oD = Ouside diameter
iD = Inner diameter
od = outside diameter
id = inner diameter
r1 = Inner crown radius
r2 = outer crown radius
h1 = straight flange height
h2 = inner height minus straight flange height
H = outside overall height
t = thickness
NOTE = the measurements indicated can be applied depending on every single parameter size
