Spherical reduction

TI type


Technical specifications
oD = 168÷6500
R = on request
r = on request
h1 = 0÷100
t = 2÷35

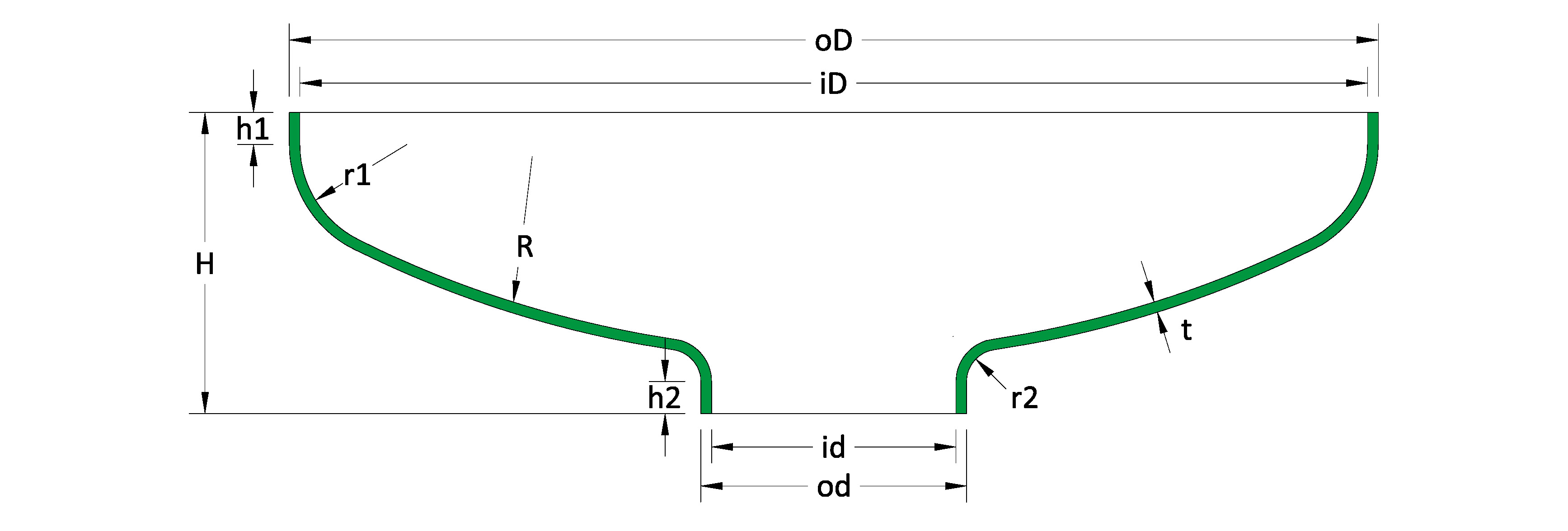

Key to symbols
oD = Ouside diameter
iD = Inner diameter
od = outside diameter
id = inner diameter
R = Inner crown radius
r1 = inner knuckle radius
r2 = outer knuckle radius
h1 = straight flange height
h2 = inner height minus straight flange height
H = outside overall height
t = thickness
NOTE = the measurements indicated can be applied depending on every single parameter size
