Spherical cap

Tf type


Technical specifications
oD = 168÷7000
R = on request
t = 2÷50

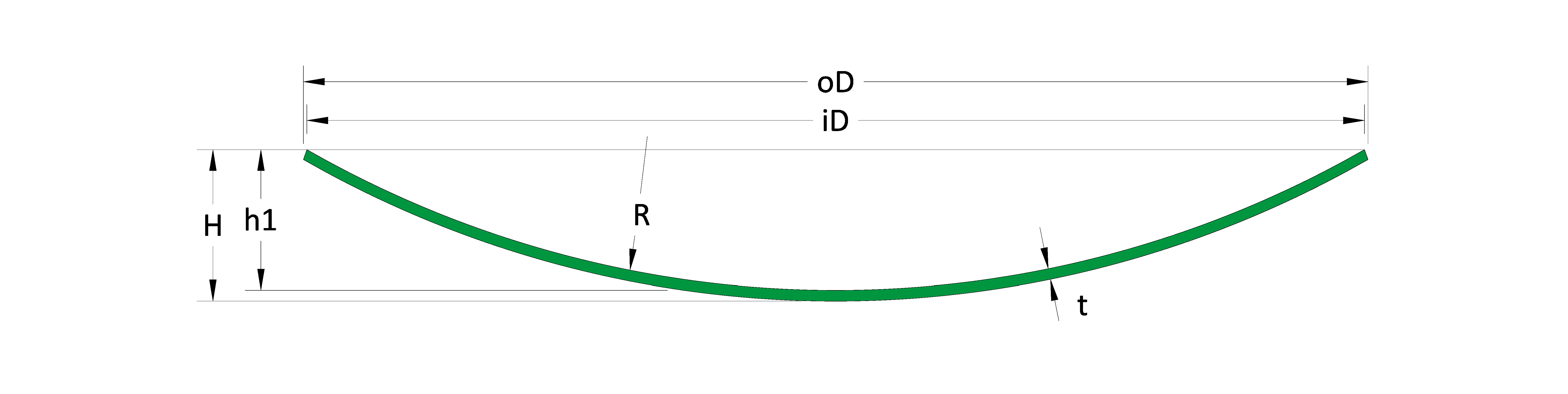

Key to symbols
oD = Ouside diameter
iD = Inner diameter
R = Inner crown radius
h1 = Inner knuckle radius
H = outside overall height
t = thickness
NOTE = the measurements indicated can be applied depending on every single parameter size.

Bevels table

Tommasin offer numerous beveling options for you. We realise precise and high-quality bevels, from the simplest to the most complex ones.

More

Manufacturing tolerances

Tommasin is synonym of transparency and accurate manufacturing. We provide our manufacturing tolerances to assist the customer in producing its productive process.

More

Supply conditions

Discover our variety of dished heads manufacturing and supply models. Our products fit our costumers' needs since they are manufactured with attention for the details, from bevels and holes, to high-quality materials.

More
