Plate-type head

Tg type


Technical specifications
oD = 168÷6500
R = on request
r = 20÷400
h1 = 0÷25
t = 2÷35

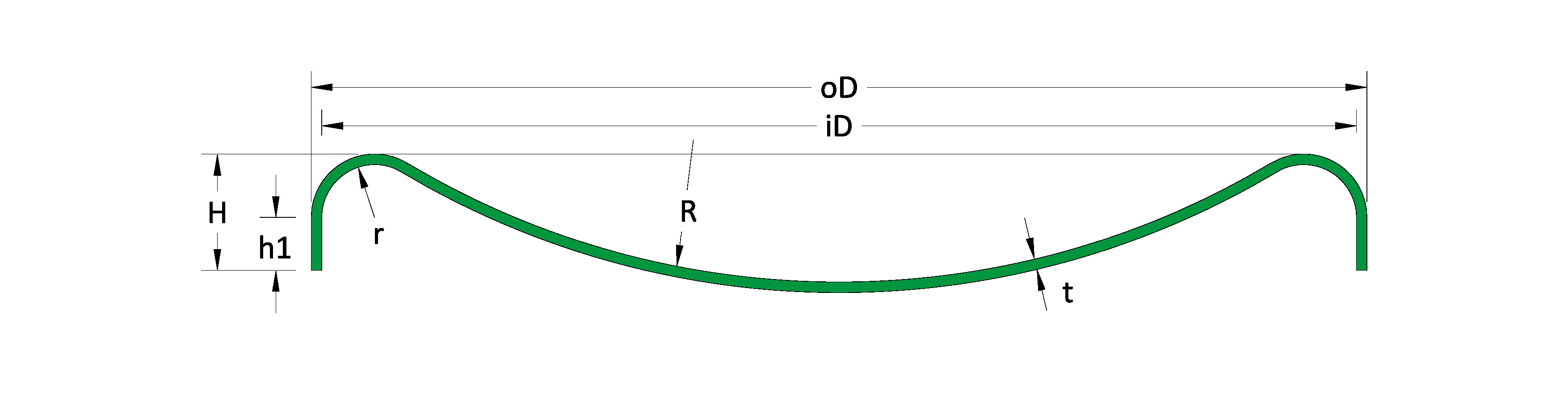

Key to symbols
oD = Ouside diameter
iD = Inner diameter
R = Inner crown radius
r = Inner knuckle radius
h1 = straight flange height
H = Inner height minus straight flange height
t = thickness
NOTE = the measurements indicated can be applied depending on every single parameter size
