Technical specifications oD = 168÷6500 α = 5°÷85° H = on request t = 2÷35

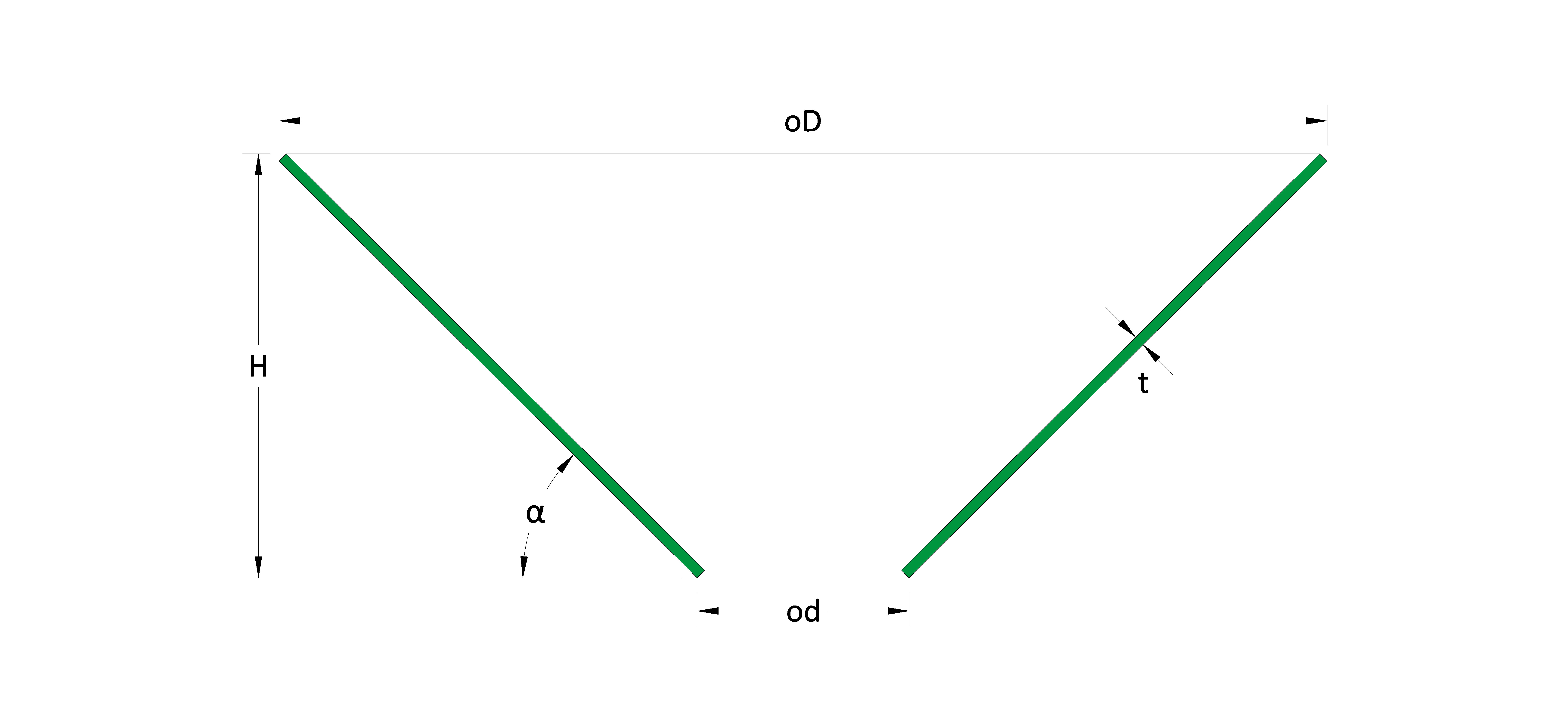

Key to symbols oD = Outside diameter iD = Inner diameter od = outside diameter id = inner diameter α = base flare angle H = outside overall height t = thickness NOTE = the measures indicated can be applied according to every parameter dimension.
Bevels table
Tommasin offer numerous beveling options for you. We realise precise and high-quality bevels, from the simplest to the most complex ones.
Tommasin is synonym of transparency and accurate manufacturing. We provide our manufacturing tolerances to assist the customer in producing its productive process.
Discover our variety of dished heads manufacturing and supply models. Our products fit our costumers' needs since they are manufactured with attention for the details, from bevels and holes, to high-quality materials.
Send us all the datails of the dished heads you want to produce, in less than an hour we will send you an offer based on your specifications. Non-binding!
