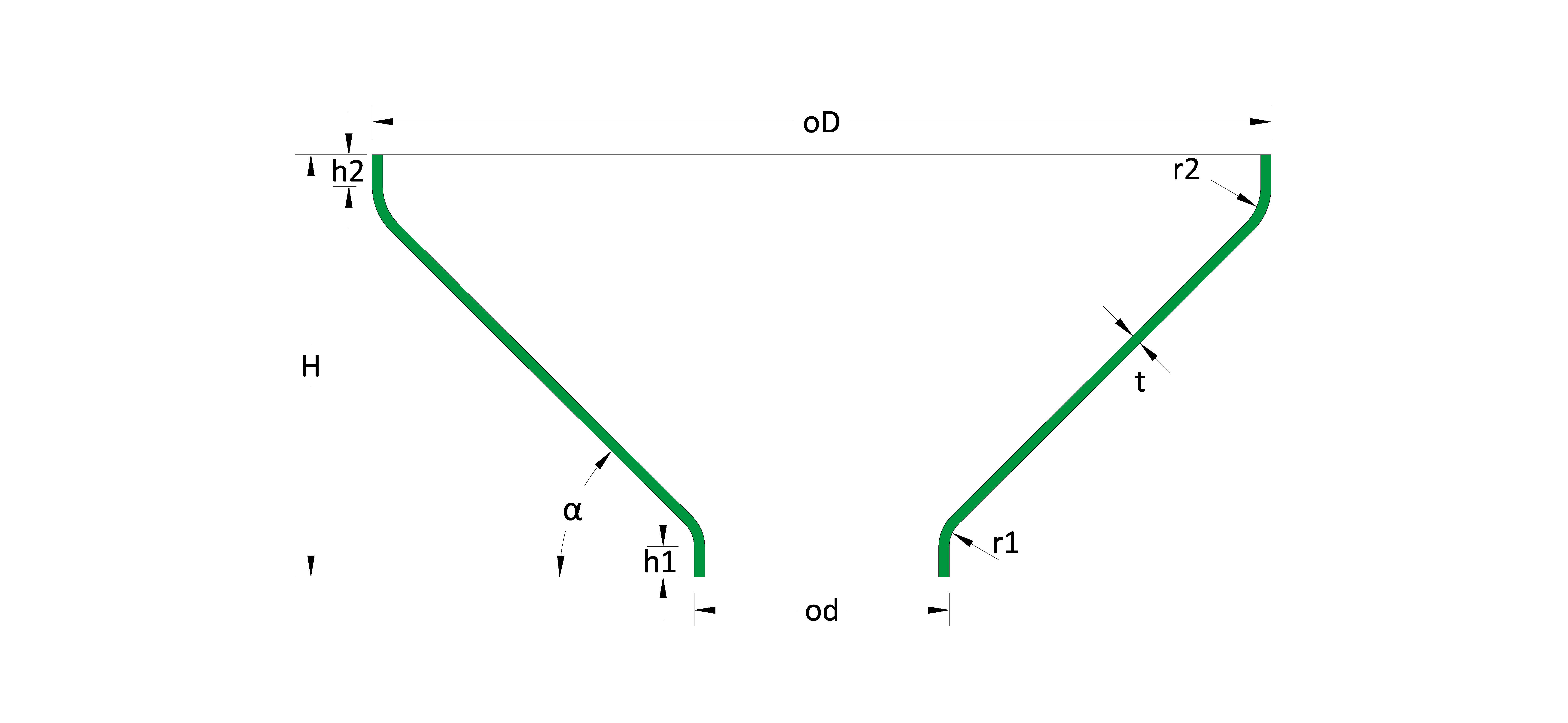

Cone with edge and extrusion

Ti3 type


Technical specifications
oD = 168÷6500
r = 0÷400
h = 0÷100
a = 5°÷85°
H = on request
t = 2÷35
Key to symbols
oD = Ouside diameter
iD = Inner diameter
od = outside diameter
id = inner diameter
r1 = Inner crown radius
r2 = ouoter crown radius
h1 = strraight flange height
h2 = inner height minus straight flange height
a = base flare angle
H = outside overall height
t = thickness
